①Design in built-in main engine,automatic synchronization,plug and play.
②Two working mode for your options.
③With advanced detecting techniques,is capable to recognize the surrounding environment automatically and resist noises.
④Wider detection range,has good reaction to both soft labels and hard tags.
⑤Pedestrians Counting System is available.
Product name |
EAS RF System-A205 |
Frequency |
8.2MHz(RF) |
Material |
ABS |
Packing size |

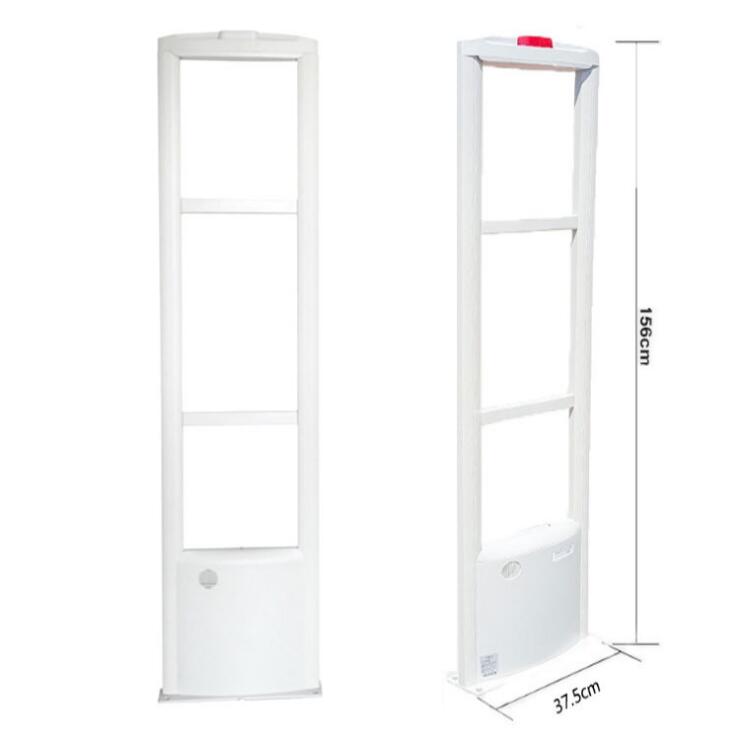

1560*375*30MM |

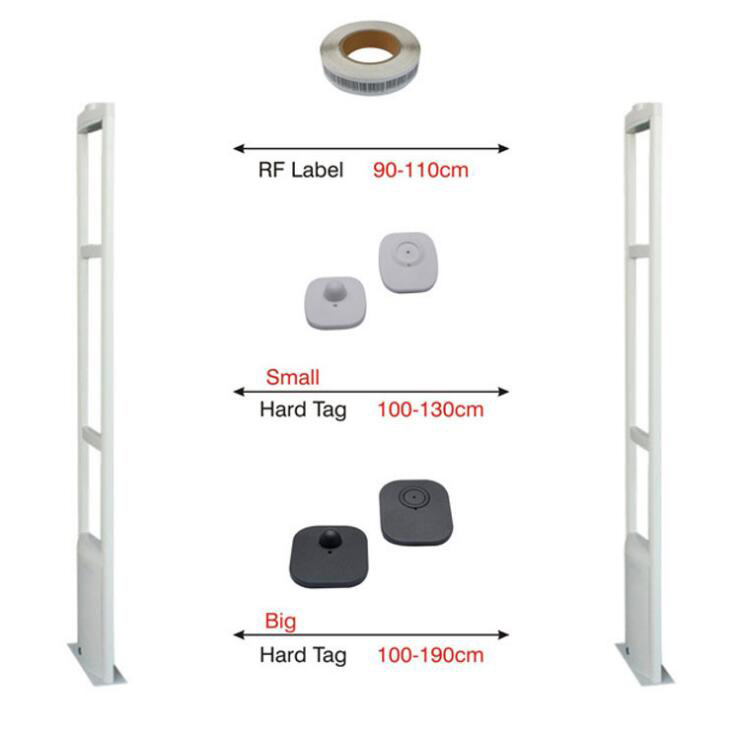

Detection range |
0.6-2.1m (depneds on the tag & enviornment at site) |
Working model |
Transmit+Receive/Mono |
Opreation voltag |
110-230v 50-60hz |
Input |
24V |
Main details of supermarket security sensor :
1.Provide an efficient power management,with software configuration and independent alarm function.
2.Can recognize aluminium foil bag and the security inside the mental shopping cart as well as the tag attached to non-ferrous metal commodities.
3.Working temperature:0-50℃;working voltage:110/220VAC.

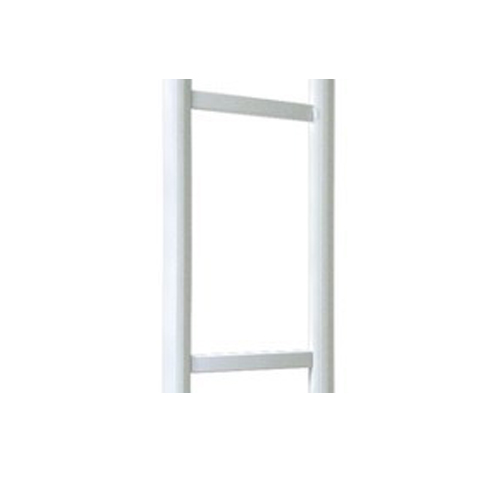

ABS Material
Light weight, not easy to damage

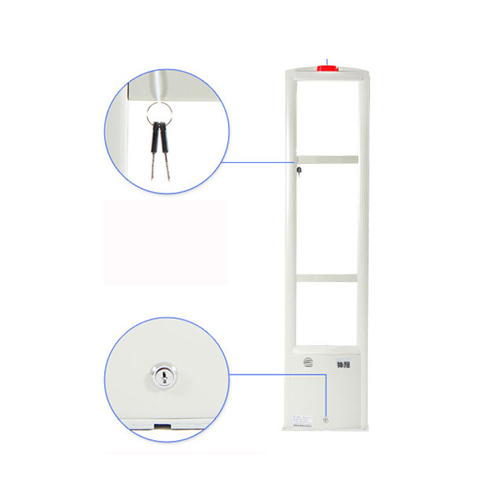

Protective Circuit Board
Have a key to prevent the circuit board from being stolen
This RF alarm gatea is widely applied to various retail stores like clothing stores, garment stores, supermarket, hypermarket, shoe stores, infant stores, book stores and so on.
Caution
1.Connecting Power line must be supplied by an independent distributor box,it is prohibited to share a common circuit with other appliances;
2.The power line has to be connected to the ground properly;
3.When the equipment is working,please don’t touch the main board with your hands.
