China EAS Anti-Theft 4040mm RF Soft Label Supermarket-R42 Label manufacturers and suppliers

EAS Anti-Theft 4040mm RF Soft Label Supermarket-R42 Label

Short Description:

RF 50x50mm label delivers dependable performance and merchandise protection using Radio Frequency (RF) technology. The printed copy on the face of the label is designed to visually inform potential thieves that items are protected by a security label and that carrying protected merchandise through the detection zone will alarm the pedestal system.

Item specifics

Brand Name:ETAGTRON

Model Number:RF 5050 Label(No.5050/RF)

Type:RF Label

Dimension:50*50MM(1.97”*1.97”)

Front Design:Nude/White/Barcode/Customized

Frequency: 8.2MHz±5%, 9.5MHz±5%, 10.5MHz±5%

Hot Melt Adhesive: Henkel

Send email to us

Product Detail

Product Tags

Product Description

RF R42 Soft Label Supermarket Security Alarm Sensor

①Two years from date of manufacture when labelsare stored between 10C -25C(50F-77F) and 35% to 65% RH

②Maximum storage temperature not to exceed 50C(120F ) for 96 hours at 80% RH

③Above 0C -38C (32F-100F ) and 90% RH at the application head.Recommended ambient temperature is 15C -32C (60F-90F ).Recommended ambient humidity is 50%-70%

Product name	EAS RF Soft Tag
Frequency	8.2MHz(RF)
Item size	Φ42MM
Detection range	0.5-2.0m (depneds on the System & enviornment at site)
Working model	RF SYSTEM
Front Design	Nude/White/Barcode/Customized

Main details of RF soft label :

1. Avoid the soft label close to the decoder device when the power is on, and keep it away from more than 30cm

2. Do not place in edible liquid

3. Products that cannot be pasted on metal packaging

4. Foldable label, the angle should be greater than 120°

5. The effective period of use is 36 months

6. The anti-theft door sensing distance is controlled within 90-100cm

Label Specifications

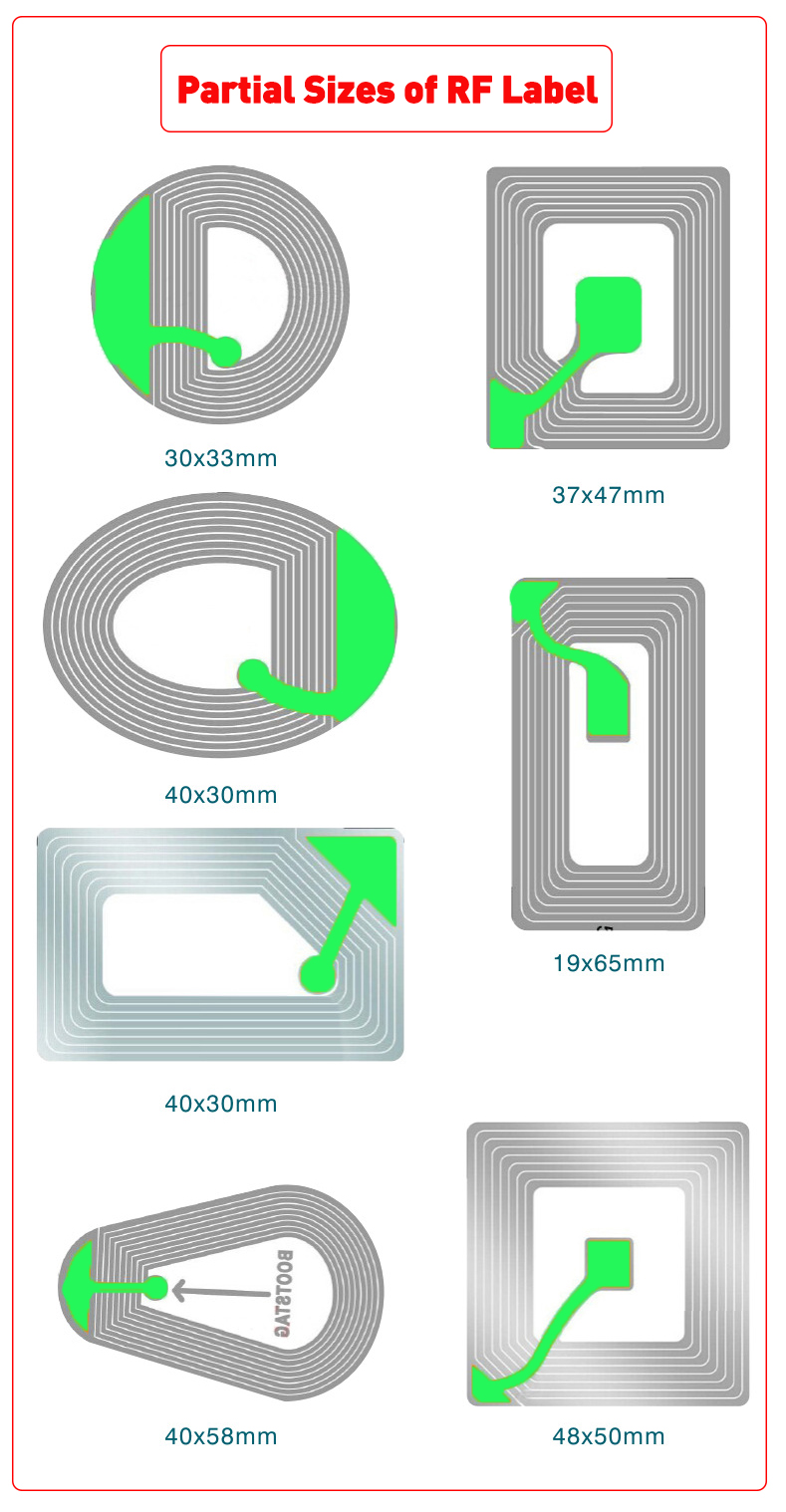

Retail-Clothing-Alarming-Security-EAS-RF-8.2MHz-Soft-Label

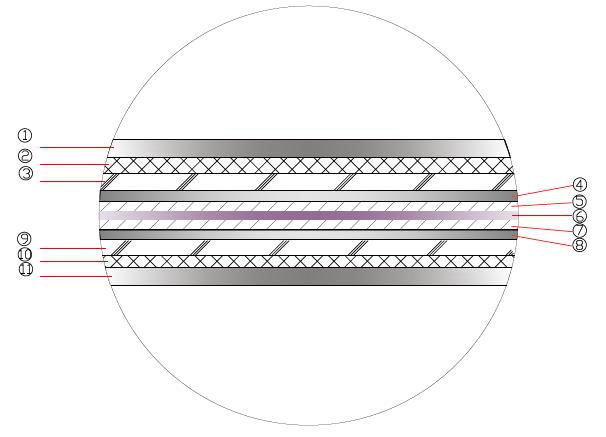

Retail-Supermarket-Alarming-Security-EAS-RF-Soft-Label-

1.Top-paper：65±4μm
2.Hot-melt：934D
3.Anti-etchingink：Greenink
4.AL：10±5％μm
5.Adhesive：1μm
6.CPP：12.8±5％μm
7.Adhesive：1μm
8.AL：50±5％μm
9.Anti-etchingink：Greenink
10.Hot-melt：934D
11.Liner：71±5μm
12.Thickness：0.20mm±0.015mm

Detection Distance

EAS-Security-alarm-System-8.2mhz-EAS-RF-Dual-Systerm

♦This product is used with the RF8.2MHz system and is widely used in supermarket shelves to prevent theft. It is suitable for all products in the environment of supermarkets and specialty stores. The scope of use includes clothing, hats, shoes and clothing packaging goods. When degaussing, use a dedicated anti-theft label degaussing device and degaussing board. The label is attached to the product to protect the product.

Applicable Scene
